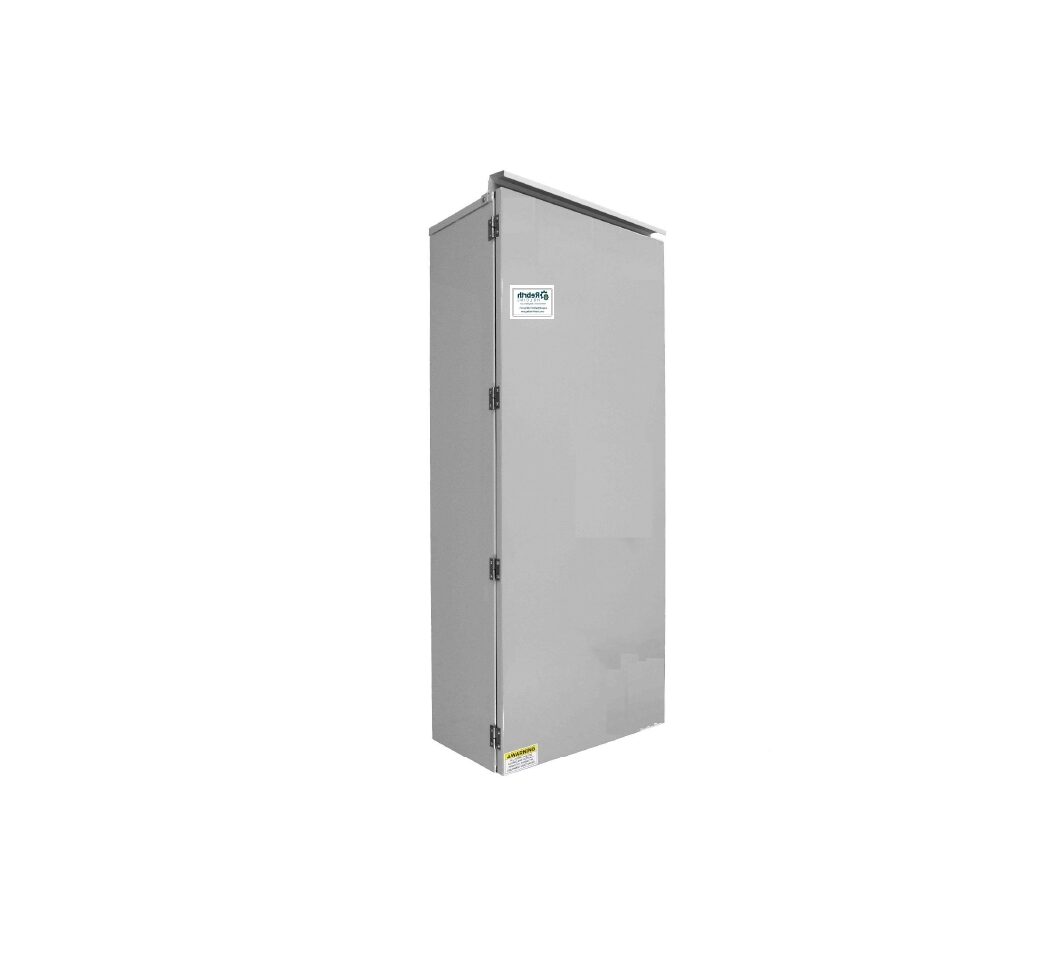

1250 Amp 3PH RB-877-6H Enclosed Circuit Breaker Disconnect

Unit Type: Enclosed Circuit Breaker
Line-In: N/A (customer provided)
Line-In Cord Cap: N/A (customer provided)
Line-In Connections: Terminal Lugs, Accepts 750MCM-1/0
Line-In Orientation: Bottom Feed
Voltage (V): 250V AC Delta
Phase (PH): 3-Phase
Frequency (Hz): 60 Hz (60-Cycles)
Protection Method: N/A (customer provided)
Protection Type: N/A (customer provided)
Protection Ampacity: 1250 Amps
Mains Rating (Amps): 1250A
Breaker Frame Size: 1250 AF
Interrupting Rating: 50 kAIC @ 250V AC
Horsepower (Standard): –
Horsepower (Max): –
Disconnect Means: Manual via Handle
Neutral Connection: –
Line-Out: N/A (customer provided)
Line-Out Cord Cap: N/A (customer provided)
Line-Out Connection: Terminal Lugs
Line-Out Orientation: Bottom Feed
Form Factor: Rectangular, Slim-profile Enclosure w/ Lockable Door & Through Door Rotary Handle
Door: (1) Left Hinged Door w/ Pad Lockable Handle & Through Door Rotary Handle
Enclosure Material: Sheet Steel
Enclosure Finish: ANSI 70 Grey
Enclosure Type: NEMA 3R

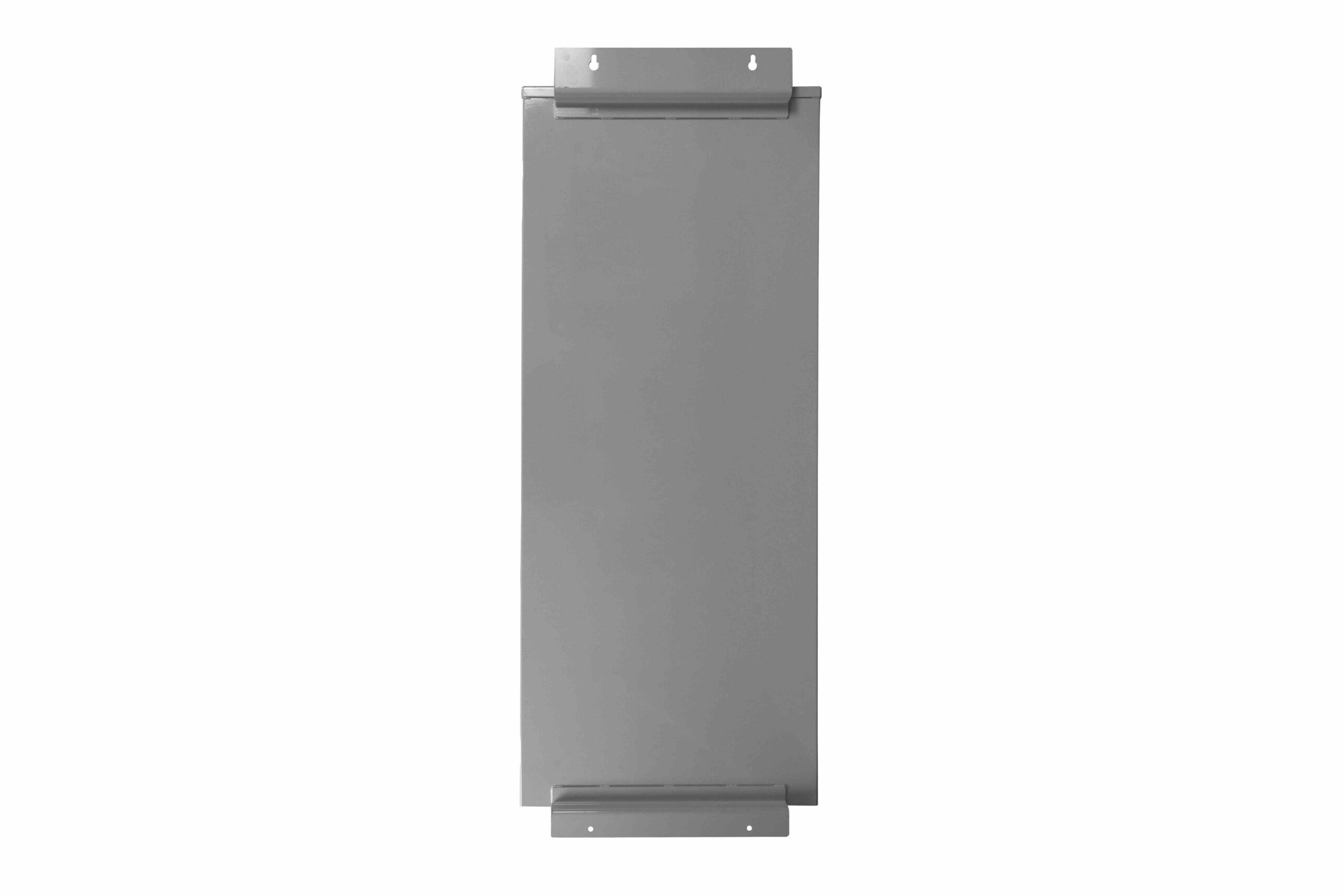

Mount: Wall Mount
Dimensions: 11.30″-L x 10.75″-W x 25.32″-H
Weight: –
Shipping Dimensions: –
Shipping Weight: –

Enclosed Circuit Breaker Disconnect Features and Benefit:

The 1250 Amp 3PH RB-877-6H Enclosed Circuit Breaker offers a safe and reliable solution for protecting industrial electrical systems against short circuits and overloads. Designed for use with three-phase 250V AC systems, this 3-pole, 3-wire unit features a through-door rotary handle for enhanced safety and ease of operation. With a high interrupt rating of 50 kAIC at 250V AC, it ensures robust performance and dependable circuit protection in demanding industrial environments.
