Description
Unit Type: Enclosed Circuit Breaker
Line-In: N/A
Line-In Cord Cap: N/A
Line-In Connections: Terminal Lugs, Accepts 750MCM-1/0
Line-In Orientation: Bottom Feed
Voltage (V): 500V AC Delta or Wye
Phase (PH): 3-Phase
Frequency (Hz): 60 Hz (60-Cycles)
Protection Method: N/A (customer provided)
Protection Type: N/A (customer provided)
Protection Ampacity: 2000 Amps
Mains Rating (Amps): 2000A
Breaker Frame Size: 2000 AF
Interrupting Rating: 65 kAIC @ 480V AC
Horsepower (Standard): –
Horsepower (Max): –
Disconnect Means: Manual via Handle
Neutral Connection: –
Line-Out: N/A (customer provided)
Line-Out Cord Cap: N/A (customer provided)
Line-Out Connection: Terminal Lugs
Line-Out Orientation: Bottom Feed

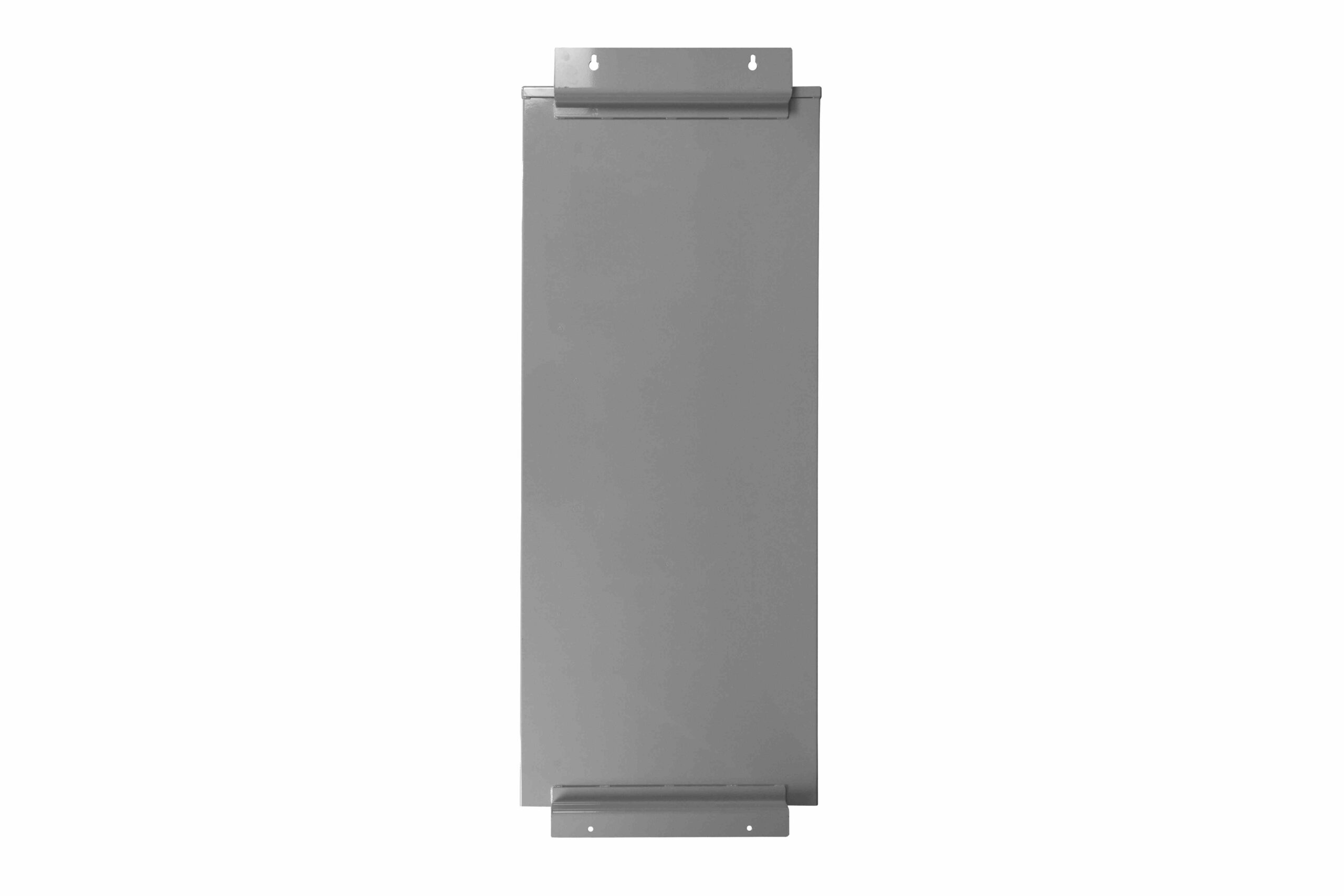

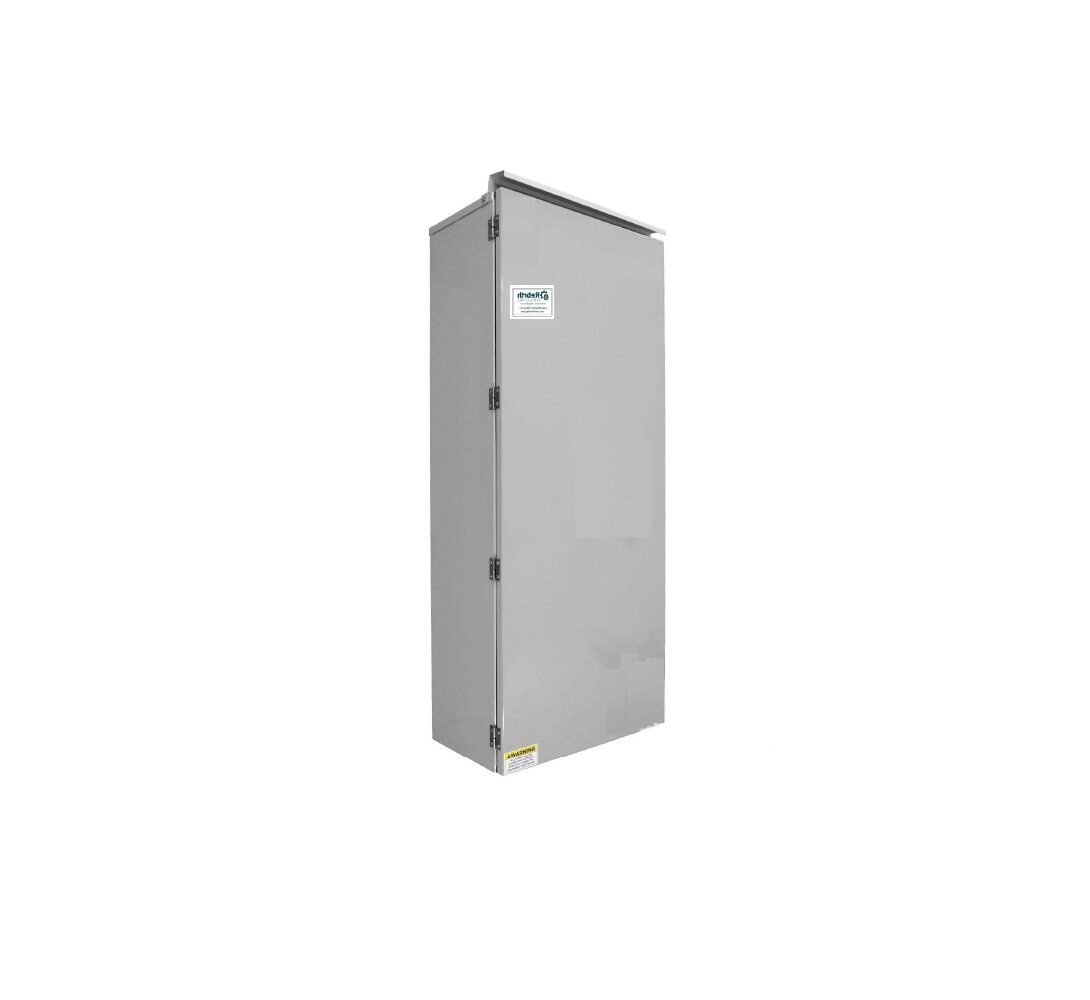

Form Factor: Rectangular, Slim-profile Enclosure w/ Lockable Door & Through Door Rotary Handle
Door: (1) Left Hinged Door w/ Pad Lockable Handle & Through Door Rotary Handle
Enclosure Material: Sheet Steel
Enclosure Finish: ANSI 70 Grey
Enclosure Type: NEMA 1
Mount: Wall Mount
Dimensions: 68.13″ x 26″ x 16.16″
Weight: –
Enclosed Circuit Breaker Disconnect Features and Benefit:
The 2200 Amp 3PH RB-577-6H enclosed circuit breaker offers dependable protection against short circuits and overloads, ensuring safety for operators in industrial environments. Designed for three-phase 500V AC systems, this breaker features a through-door rotary handle for easy operation. With a 2-pole, 3-wire configuration, it delivers a 65 kAIC interrupt rating at 500V AC, providing exceptional performance and reliability in critical applications.
