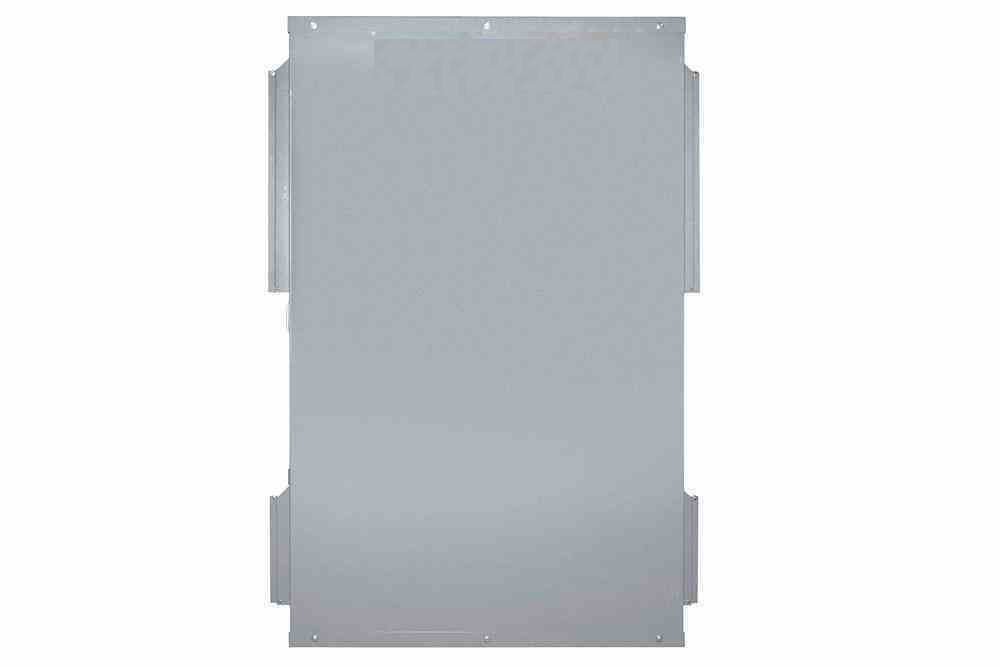

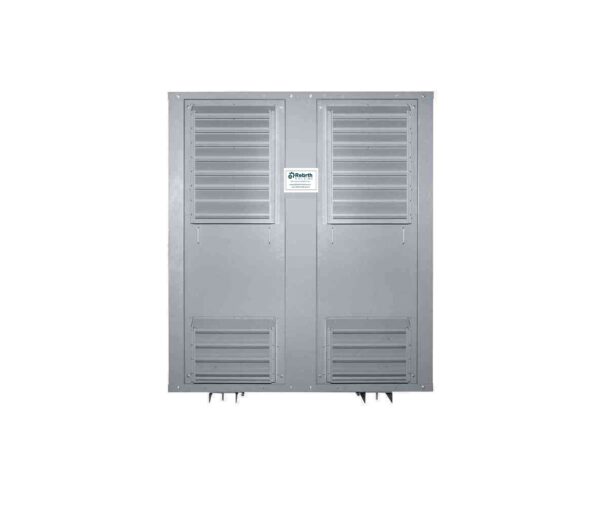

2800 kVA 3PH RB-596-6H Distribution Transformer

Transformer Type: Distribution
Phase: Three Phase
Frequency: 60 Hz
kVA: 2800
Primary Voltage: 460 V Delta
Taps: 2 x 2.5% FCAN; 4 x 2.5% FCBN
Secondary Voltage: 558Y/314 V Wye-N
Winding Material: Aluminum
Efficiency: –
Insulation: 220°C
Temperature Rise: 150°C
Impedance: 7.0%
Seismic: Yes
Sound Level: Meets NEMA ST-20 Standards
Primary Termination: –
Secondary Termination: –
Enclosure Material: NEMA Standard Type 3R
Finish: ANSI 61 Grey, UL50 Finish
Dimensions: 100.00″H x 100.00″W x 72.00″D
Weight: 12,300 lb
Mounting: Floor Mount

Transformer Features and Benefit:

The 2800 kVA 3PH RB-596-6H is a three-phase distribution transformer rated at 2800 kVA. It features a primary voltage of 460 V Delta and delivers a secondary voltage of 558Y/314 V Wye-N, making it ideal for high-capacity power distribution in industrial and commercial applications. Designed for durability and efficiency, this unit boasts robust construction, with cores made from non-aging, cold-rolled silicon steel laminations. Manufactured using state-of-the-art technology, the core design ensures reduced energy losses, superior performance, and a long operational life.
