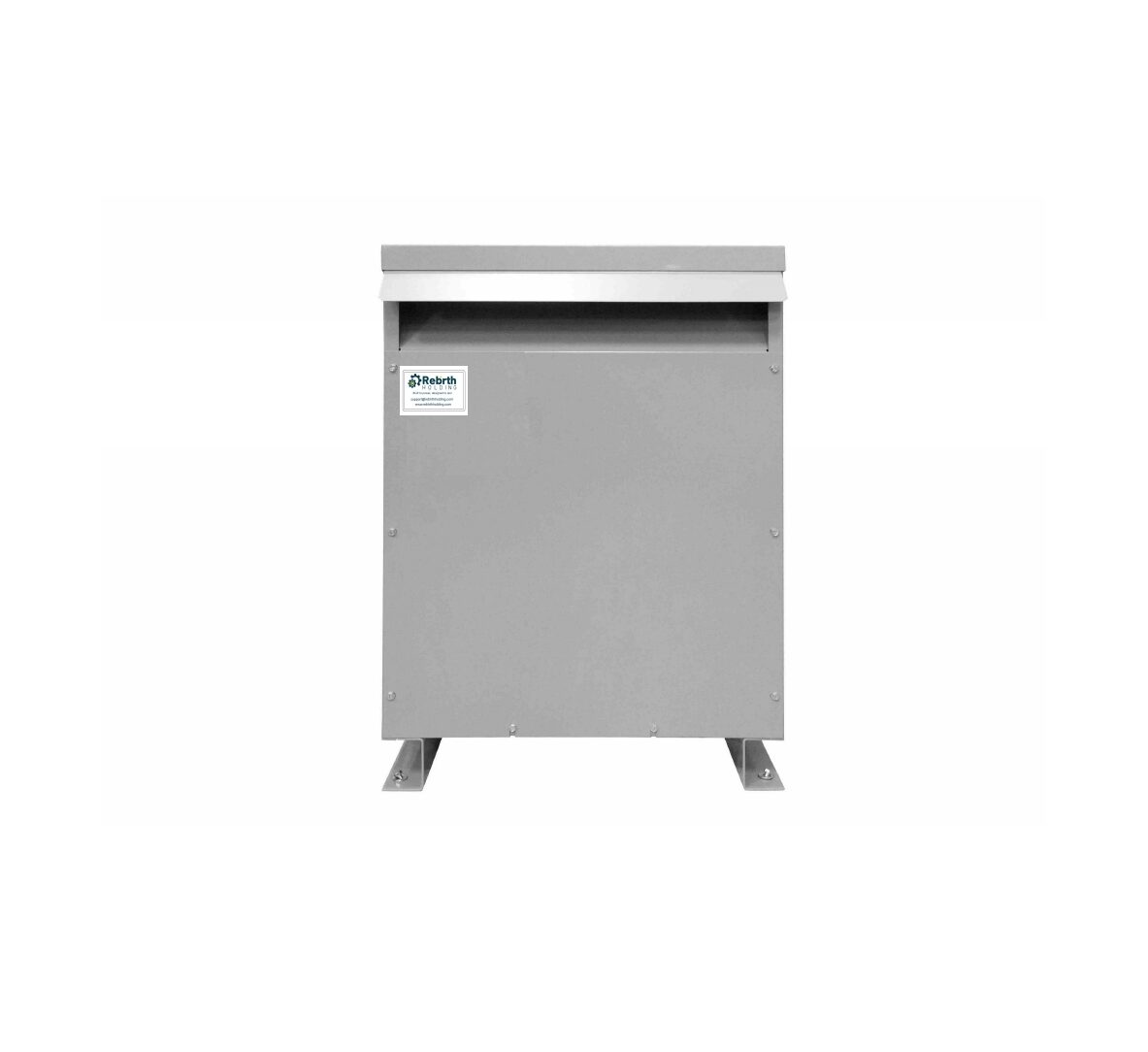

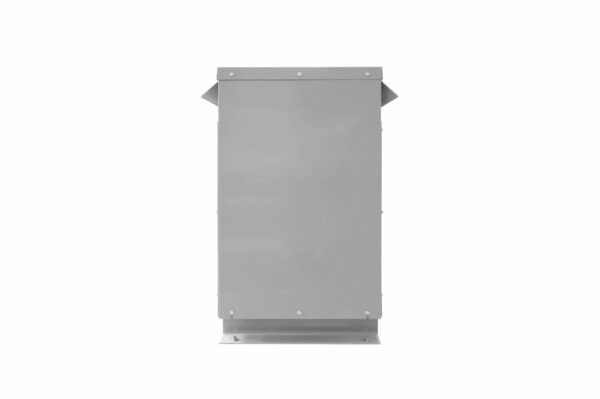

80 kVA 1PH RB-436-2H Efficiency Transformer

Phase: Single Phase
Frequency: 60 Hz
kVA: 80
Primary Voltage: 220 V
Primary FCAN: None
Primary FCBN: None
Secondary Voltage: 480 V
Winding Material: Aluminum
Efficiency: 0.9867
No Load Losses: 172 W
Full Load Losses: 2,175 W
Regulation @ 100% PF: 0.0276
Insulation: 220°C
Temperature Rise: 150°C
Impedance (Std): 0.0667
Seismic Zone: Zone 4
Sound Level: Meets NEMA ST-20 Standards
Primary Termination: Front Accessible Terminals
Secondary Termination: Front Accessible Terminals
Enclosure Material: NEMA Type 3R Heavy Duty Ventilated
Finish: ANSI 61 Grey Finish
Dimensions: 35.47″H x 31.9″W x 32.88″D
Weight: 430 lb
Shipping Dimensions: 43.47″H x 48″W x 48″D
Shipping Weight: 495 lb
Mounting: Floor Mount

Transformer Features and Benefit:

The 1PH RB-436-2H is an 80 kVA single-phase transformer engineered for high efficiency and dependable performance. It operates with a primary voltage of 250 V and delivers a secondary voltage of 500 V, making it ideal for applications requiring voltage step-up capability. Designed for durability, this unit features robust construction, and its core is built using non-aging, cold-rolled silicon steel laminations, manufactured with state-of-the-art technology to ensure optimal efficiency and extended service life.
